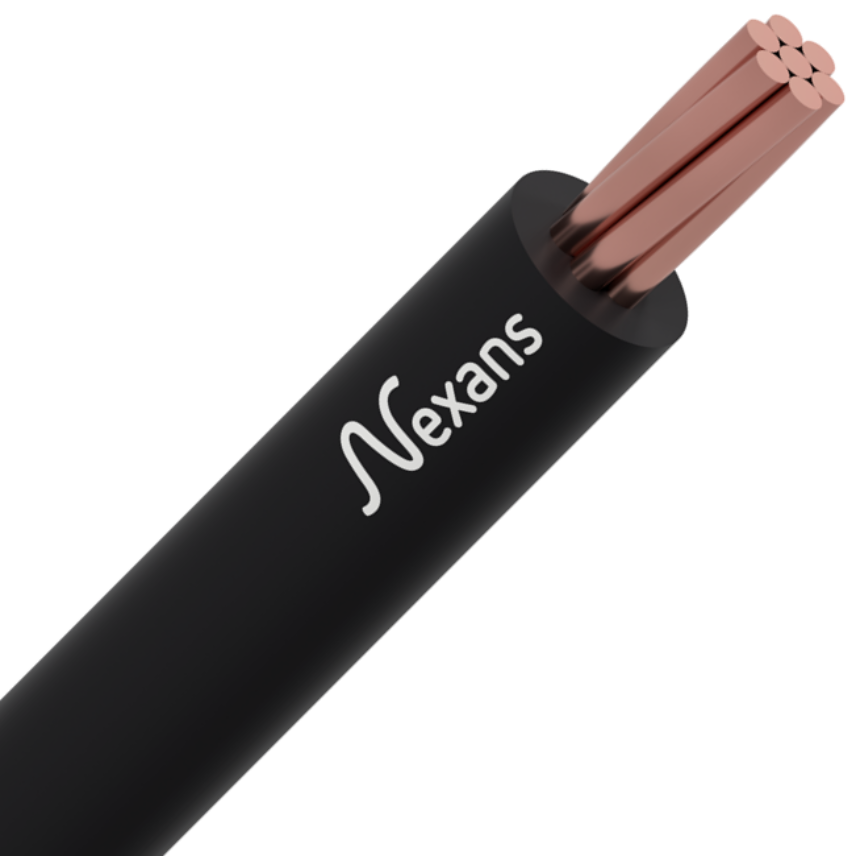

H07Z-U/R (BS) Cca

H07Z-U/R (BS) Cca

H07Z-U/R (BS) Cca

Single-core, single-wire, multi-wire, or fine-stranded copper conductor power cables. These halogen-free and fire-safe cables are ideal for indoor applications. Thanks to their low smoke density, non-flame propagating properties and no corrosive gas emissions for protecting life and property in case of fire.

Read more
Download all documents
Contact us

Products

Actions
Filters

  • products

H07Z-R 1G1.5 mm² 100M GREEN/YELLOW

Nexans ref. 10567703 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1G1.5 mm² GREEN/YELLOW

Nexans ref. 10526702 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1G1.5 mm² HONG KONG GREEN/YELLOW 500M

Nexans ref. 10531307 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1G1.5 mm² HONG KONG GREEN/YELLOW 500M

Nexans ref. 10539986 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1G10 mm² 100M GREEN/YELLOW

Nexans ref. 10567712 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1G10 mm² GREEN/YELLOW

Nexans ref. 10518984 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1G10 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10544245 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1G10 mm² HONG KONG GREEN/YELLOW 500M

Nexans ref. 10530918 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1G10 mm² YELLOW/GREEN

Nexans ref. 10544074 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1G120 mm² GREEN/YELLOW

Nexans ref. 10518977 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 16.2 mm
  • Approximate weight: 1130 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 500 A
  • Perm. current rating in air 30°C - trefoil formation: 383 A



H07Z-R 1G120 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10538264 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 17.4 mm
  • Approximate weight: 1150 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 500 A
  • Perm. current rating in air 30°C - trefoil formation: 383 A



H07Z-R 1G150 mm² GREEN/YELLOW

Nexans ref. 10518976 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 17.8 mm
  • Approximate weight: 1390 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1G150 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10539783 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 19.3 mm
  • Approximate weight: 1410 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1G16 mm² GREEN/YELLOW

Nexans ref. 10518983 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1G16 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10544246 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1G16 mm² HONG KONG GREEN/YELLOW 500M

Nexans ref. 10521047 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1G16 mm² YELLOW/GREEN

Nexans ref. 10544075 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1G185 mm² GREEN/YELLOW

Nexans ref. 10530910 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 19.8 mm
  • Approximate weight: 1730 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 661 A
  • Perm. current rating in air 30°C - trefoil formation: 510 A



H07Z-R 1G185 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10540024 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 19.8 mm
  • Approximate weight: 1730 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 661 A
  • Perm. current rating in air 30°C - trefoil formation: 510 A



H07Z-R 1G2.5 mm² 100M GREEN/YELLOW

Nexans ref. 10567708 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1G2.5 mm² GREEN/YELLOW

Nexans ref. 10520927 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1G2.5 mm² GREEN/YELLOW 500M

Nexans ref. 10526184 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1G2.5 mm² HONG KONG GREEN/YELLOW 500M

Nexans ref. 10521046 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1G240 mm² GREEN/YELLOW

Nexans ref. 10518975 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 22.7 mm
  • Approximate weight: 2270 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 781 A
  • Perm. current rating in air 30°C - trefoil formation: 607 A



H07Z-R 1G240 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10540025 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 24.1 mm
  • Approximate weight: 2300 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 781 A
  • Perm. current rating in air 30°C - trefoil formation: 607 A



H07Z-R 1G25 mm² GREEN/YELLOW

Nexans ref. 10518982 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1G25 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10538262 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.4 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1G25 mm² YELLOW/GREEN

Nexans ref. 10544076 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1G300 mm² GREEN/YELLOW

Nexans ref. 10535873 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 25.2 mm
  • Approximate weight: 2850 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 902 A
  • Perm. current rating in air 30°C - trefoil formation: 703 A



H07Z-R 1G35 mm² GREEN/YELLOW

Nexans ref. 10518981 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1G35 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10538263 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.4 mm
  • Approximate weight: 350 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1G35 mm² YELLOW/GREEN

Nexans ref. 10544077 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1G4 mm² 100M GREEN/YELLOW

Nexans ref. 10567711 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1G4 mm² GREEN/YELLOW

Nexans ref. 10518985 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1G4 mm² GREEN/YELLOW 500M

Nexans ref. 10526187 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1G4 mm² HONG KONG GREEN/YELLOW 500M

Nexans ref. 10539965 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1G4 mm² YELLOW/GREEN

Nexans ref. 10544073 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1G400 mm² GREEN/YELLOW

Nexans ref. 10535874 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 28.4 mm
  • Approximate weight: 3650 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 1085 A
  • Perm. current rating in air 30°C - trefoil formation: 823 A



H07Z-R 1G50 mm² GREEN/YELLOW

Nexans ref. 10518980 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 10.9 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1G50 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10540015 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 11.8 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1G500 mm² GREEN/YELLOW

Nexans ref. 10535875 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 32.0 mm
  • Approximate weight: 4670 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 1253 A
  • Perm. current rating in air 30°C - trefoil formation: 946 A



H07Z-R 1G6 mm² GREEN/YELLOW

Nexans ref. 10529762 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1G6 mm² HONG KONG GREEN/YELLOW 500M

Nexans ref. 10540002 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1G6 mm² YELLOW/GREEN

Nexans ref. 10544078 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1G630 mm² GREEN/YELLOW

Nexans ref. 10535876 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 35.9 mm
  • Approximate weight: 5980 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 1454 A
  • Perm. current rating in air 30°C - trefoil formation: 1088 A



H07Z-R 1G70 mm² GREEN/YELLOW

Nexans ref. 10518979 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 12.5 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1G70 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10540018 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 13.4 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1G95 mm² GREEN/YELLOW

Nexans ref. 10518978 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 14.6 mm
  • Approximate weight: 910 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1G95 mm² HONG KONG GREEN/YELLOW

Nexans ref. 10540023 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Green / Yellow
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 15.6 mm
  • Approximate weight: 930 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x1.5 mm² RED 500M

Nexans ref. 10571564

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Red
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² 100M BLACK

Nexans ref. 10567701 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² 100M BLUE

Nexans ref. 10544133 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² 100M BROWN

Nexans ref. 10544134 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² 100M GREY

Nexans ref. 10567702 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² BLACK

Nexans ref. 10535877 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² BLUE

Nexans ref. 10520591 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² BROWN

Nexans ref. 10520592 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² GREY

Nexans ref. 10535878 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG BLACK 500M

Nexans ref. 10521042 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG BLUE 500M

Nexans ref. 10526180 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG BLUE 500M

Nexans ref. 10539985 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG BROWN 500M

Nexans ref. 10526181 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG BROWN 500M

Nexans ref. 10539984 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG GREY 500M

Nexans ref. 10521043 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG ORANGE 500M

Nexans ref. 10542776 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Orange
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² HONG KONG WHITE 500M

Nexans ref. 10542775 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: White
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x1.5 mm² RED

Nexans ref. 10556841 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Red
  • Conductor cross-section: 1.5 mm²
  • Nominal outer diameter: 3.0 mm
  • Approximate weight: 20 kg/km
  • Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 23 A
  • Perm. current rating in air 30°C - trefoil formation: 23 A



H07Z-R 1x10 mm² BLACK

Nexans ref. 10526749 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² BLACK

Nexans ref. 10571637

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² BLUE

Nexans ref. 10535881 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² BLUE

Nexans ref. 10544126 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² BLUE

Nexans ref. 10571639

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² BROWN

Nexans ref. 10535880 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² BROWN

Nexans ref. 10544120 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² BROWN

Nexans ref. 10571636

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² GREY

Nexans ref. 10535882 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² GREY

Nexans ref. 10571638

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² HONG KONG BLACK 500M

Nexans ref. 10538260 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² HONG KONG BLUE 500M

Nexans ref. 10530917 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² HONG KONG BROWN 500M

Nexans ref. 10530916 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x10 mm² HONG KONG GREY 500M

Nexans ref. 10538261 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 10 mm²
  • Nominal outer diameter: 5.8 mm
  • Approximate weight: 110 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 75 A
  • Perm. current rating in air 30°C - trefoil formation: 75 A



H07Z-R 1x120 mm² BLACK

Nexans ref. 10535893 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 16.2 mm
  • Approximate weight: 1130 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 500 A
  • Perm. current rating in air 30°C - trefoil formation: 383 A



H07Z-R 1x120 mm² BLUE

Nexans ref. 10535892 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 16.2 mm
  • Approximate weight: 1130 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 500 A
  • Perm. current rating in air 30°C - trefoil formation: 383 A



H07Z-R 1x120 mm² BROWN

Nexans ref. 10535891 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 16.2 mm
  • Approximate weight: 1130 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 500 A
  • Perm. current rating in air 30°C - trefoil formation: 383 A



H07Z-R 1x120 mm² GREY

Nexans ref. 10535894 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 16.2 mm
  • Approximate weight: 1130 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 500 A
  • Perm. current rating in air 30°C - trefoil formation: 383 A



H07Z-R 1x150 mm² BLACK

Nexans ref. 10535913 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 17.8 mm
  • Approximate weight: 1390 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x150 mm² BLUE

Nexans ref. 10535912 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 17.8 mm
  • Approximate weight: 1390 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x150 mm² BROWN

Nexans ref. 10535911 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 17.8 mm
  • Approximate weight: 1390 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x150 mm² GREY

Nexans ref. 10535914 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 17.8 mm
  • Approximate weight: 1390 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x150 mm² HONG KONG BLACK

Nexans ref. 10539746 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 19.3 mm
  • Approximate weight: 1410 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x150 mm² HONG KONG BLUE

Nexans ref. 10539745 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 19.3 mm
  • Approximate weight: 1410 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x150 mm² HONG KONG BROWN

Nexans ref. 10539747 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 19.3 mm
  • Approximate weight: 1410 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x150 mm² HONG KONG GREY

Nexans ref. 10539748 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 19.3 mm
  • Approximate weight: 1410 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 577 A
  • Perm. current rating in air 30°C - trefoil formation: 444 A



H07Z-R 1x16 mm² BLACK

Nexans ref. 10535927 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² BLACK

Nexans ref. 10571661

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² BLUE

Nexans ref. 10535926 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² BLUE

Nexans ref. 10544127 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² BLUE

Nexans ref. 10571663

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² BROWN

Nexans ref. 10535925 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² BROWN

Nexans ref. 10544121 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² BROWN

Nexans ref. 10571660

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² GREY

Nexans ref. 10535928 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² GREY

Nexans ref. 10571662

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² HONG KONG BLACK 500M

Nexans ref. 10540004 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² HONG KONG BLUE 500M

Nexans ref. 10540006 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² HONG KONG BROWN 500M

Nexans ref. 10540003 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x16 mm² HONG KONG GREY 500M

Nexans ref. 10540005 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 6.8 mm
  • Approximate weight: 165 kg/km
  • Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 100 A
  • Perm. current rating in air 30°C - trefoil formation: 100 A



H07Z-R 1x185 mm² BLACK

Nexans ref. 10530775 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 19.8 mm
  • Approximate weight: 1730 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 661 A
  • Perm. current rating in air 30°C - trefoil formation: 510 A



H07Z-R 1x185 mm² BLUE

Nexans ref. 10535935 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 19.8 mm
  • Approximate weight: 1730 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 661 A
  • Perm. current rating in air 30°C - trefoil formation: 510 A



H07Z-R 1x185 mm² BROWN

Nexans ref. 10535934 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 19.8 mm
  • Approximate weight: 1730 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 661 A
  • Perm. current rating in air 30°C - trefoil formation: 510 A



H07Z-R 1x185 mm² GREY

Nexans ref. 10535936 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 19.8 mm
  • Approximate weight: 1730 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0991 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 661 A
  • Perm. current rating in air 30°C - trefoil formation: 510 A



H07Z-R 1x2.5 mm² 100M BLACK

Nexans ref. 10567705 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² 100M BLUE

Nexans ref. 10567707 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² 100M BROWN

Nexans ref. 10567704 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² 100M GREY

Nexans ref. 10567706 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² BLACK

Nexans ref. 10535982 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² BLACK 500M

Nexans ref. 10570548

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² BLUE

Nexans ref. 10520925 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² BLUE 500M

Nexans ref. 10526182 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² BROWN

Nexans ref. 10520926 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² BROWN 500M

Nexans ref. 10526183 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² GREY

Nexans ref. 10535983 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² GREY 500M

Nexans ref. 10570549

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² HONG KONG BLACK 500M

Nexans ref. 10542890 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² HONG KONG BLUE 500M

Nexans ref. 10521045 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² HONG KONG BROWN 500M

Nexans ref. 10521044 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² HONG KONG GREY 500M

Nexans ref. 10542891 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x2.5 mm² RED

Nexans ref. 10540310 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Red
  • Conductor cross-section: 2.5 mm²
  • Nominal outer diameter: 3.6 mm
  • Approximate weight: 30 kg/km
  • Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 32 A
  • Perm. current rating in air 30°C - trefoil formation: 32 A



H07Z-R 1x240 mm² BLACK

Nexans ref. 10526750 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 22.7 mm
  • Approximate weight: 2270 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 781 A
  • Perm. current rating in air 30°C - trefoil formation: 607 A



H07Z-R 1x240 mm² BLUE

Nexans ref. 10535990 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 22.7 mm
  • Approximate weight: 2270 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 781 A
  • Perm. current rating in air 30°C - trefoil formation: 607 A



H07Z-R 1x240 mm² BROWN

Nexans ref. 10535989 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 22.7 mm
  • Approximate weight: 2270 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 781 A
  • Perm. current rating in air 30°C - trefoil formation: 607 A



H07Z-R 1x240 mm² GREY

Nexans ref. 10535991 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 22.7 mm
  • Approximate weight: 2270 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0754 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 781 A
  • Perm. current rating in air 30°C - trefoil formation: 607 A



H07Z-R 1x25 mm² BLACK

Nexans ref. 10535999 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² BLACK

Nexans ref. 10544317 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² BLUE

Nexans ref. 10519408 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² BLUE

Nexans ref. 10544128 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² BROWN

Nexans ref. 10519407 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² BROWN

Nexans ref. 10544122 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² GREY

Nexans ref. 10536000 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² GREY

Nexans ref. 10544318 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.3 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² HONG KONG BLACK

Nexans ref. 10540008 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.4 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² HONG KONG BLUE

Nexans ref. 10540010 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.4 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² HONG KONG BROWN

Nexans ref. 10540007 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.4 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x25 mm² HONG KONG GREY

Nexans ref. 10540009 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 8.4 mm
  • Approximate weight: 260 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 182 A
  • Perm. current rating in air 30°C - trefoil formation: 135 A



H07Z-R 1x300 mm² BLACK

Nexans ref. 10536008 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 25.2 mm
  • Approximate weight: 2850 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 902 A
  • Perm. current rating in air 30°C - trefoil formation: 703 A



H07Z-R 1x300 mm² BLUE

Nexans ref. 10536007 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 25.2 mm
  • Approximate weight: 2850 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 902 A
  • Perm. current rating in air 30°C - trefoil formation: 703 A



H07Z-R 1x300 mm² BROWN

Nexans ref. 10536006 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 25.2 mm
  • Approximate weight: 2850 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 902 A
  • Perm. current rating in air 30°C - trefoil formation: 703 A



H07Z-R 1x300 mm² GREY

Nexans ref. 10536009 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 25.2 mm
  • Approximate weight: 2850 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0601 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 902 A
  • Perm. current rating in air 30°C - trefoil formation: 703 A



H07Z-R 1x35 mm² BLACK

Nexans ref. 10536023 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² BLACK

Nexans ref. 10544319 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² BLUE

Nexans ref. 10536022 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² BLUE

Nexans ref. 10544129 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² BROWN

Nexans ref. 10536021 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² BROWN

Nexans ref. 10544123 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² GREY

Nexans ref. 10536024 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² GREY

Nexans ref. 10544320 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.3 mm
  • Approximate weight: 340 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² HONG KONG BLACK

Nexans ref. 10531835 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.4 mm
  • Approximate weight: 350 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² HONG KONG BLUE

Nexans ref. 10531837 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.4 mm
  • Approximate weight: 350 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² HONG KONG BROWN

Nexans ref. 10531834 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.4 mm
  • Approximate weight: 350 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x35 mm² HONG KONG GREY

Nexans ref. 10531836 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 9.4 mm
  • Approximate weight: 350 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 226 A
  • Perm. current rating in air 30°C - trefoil formation: 169 A



H07Z-R 1x4 mm² 100M BLUE

Nexans ref. 10567710 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² 100M BROWN

Nexans ref. 10567709 - Country ref. TR

  • Packaging: Coil (100m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BLACK

Nexans ref. 10536026 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BLACK 500M

Nexans ref. 10570570

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BLUE

Nexans ref. 10519037 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BLUE

Nexans ref. 10544125 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BLUE 500M

Nexans ref. 10526185 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BROWN

Nexans ref. 10518986 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BROWN

Nexans ref. 10544119 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² BROWN 500M

Nexans ref. 10526186 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² GREY

Nexans ref. 10536027 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² GREY 500M

Nexans ref. 10570571

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² HONG KONG BLACK 500M

Nexans ref. 10539988 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² HONG KONG BLUE 500M

Nexans ref. 10539995 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² HONG KONG BROWN 500M

Nexans ref. 10539987 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x4 mm² HONG KONG GREY 500M

Nexans ref. 10539989 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 4 mm²
  • Nominal outer diameter: 4.1 mm
  • Approximate weight: 45 kg/km
  • Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 42 A
  • Perm. current rating in air 30°C - trefoil formation: 42 A



H07Z-R 1x400 mm² BLACK

Nexans ref. 10536029 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 400 mm²
  • Nominal outer diameter: 28.4 mm
  • Approximate weight: 3650 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 1085 A
  • Perm. current rating in air 30°C - trefoil formation: 823 A



H07Z-R 1x50 mm² BLACK

Nexans ref. 10536045 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 10.9 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x50 mm² BLUE

Nexans ref. 10536044 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 10.9 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x50 mm² BROWN

Nexans ref. 10536043 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 10.9 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x50 mm² GREY

Nexans ref. 10536046 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 10.9 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x50 mm² HONG KONG BLACK

Nexans ref. 10540012 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 11.8 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x50 mm² HONG KONG BLUE

Nexans ref. 10540014 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 11.8 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x50 mm² HONG KONG BROWN

Nexans ref. 10540011 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 11.8 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x50 mm² HONG KONG GREY

Nexans ref. 10540013 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 11.8 mm
  • Approximate weight: 470 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 275 A
  • Perm. current rating in air 30°C - trefoil formation: 207 A



H07Z-R 1x500 mm² BLACK

Nexans ref. 10536052 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 500 mm²
  • Nominal outer diameter: 32.0 mm
  • Approximate weight: 4660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0366 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 1253 A
  • Perm. current rating in air 30°C - trefoil formation: 946 A



H07Z-R 1x6 mm² BLACK

Nexans ref. 10536072 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² BLACK

Nexans ref. 10544315 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² BLUE

Nexans ref. 10536071 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² BLUE

Nexans ref. 10544130 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² BROWN

Nexans ref. 10532807 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² BROWN

Nexans ref. 10544124 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² GREY

Nexans ref. 10536073 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² GREY

Nexans ref. 10544316 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² HONG KONG BLACK 500M

Nexans ref. 10542892 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² HONG KONG BLUE 500M

Nexans ref. 10540001 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² HONG KONG BROWN 500M

Nexans ref. 10540000 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x6 mm² HONG KONG GREY 500M

Nexans ref. 10542893 - Country ref. TR

  • Packaging: Coil (500m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 6 mm²
  • Nominal outer diameter: 4.6 mm
  • Approximate weight: 65 kg/km
  • Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 54 A
  • Perm. current rating in air 30°C - trefoil formation: 54 A



H07Z-R 1x630 mm² BLACK

Nexans ref. 10536075 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 630 mm²
  • Nominal outer diameter: 35.9 mm
  • Approximate weight: 5980 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.0283 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 1454 A
  • Perm. current rating in air 30°C - trefoil formation: 1088 A



H07Z-R 1x70 mm² BLACK

Nexans ref. 10536091 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 12.5 mm
  • Approximate weight: 650 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x70 mm² BLUE

Nexans ref. 10536090 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 12.5 mm
  • Approximate weight: 650 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x70 mm² BROWN

Nexans ref. 10536089 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 12.5 mm
  • Approximate weight: 650 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x70 mm² GREY

Nexans ref. 10536092 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 12.5 mm
  • Approximate weight: 650 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x70 mm² HONG KONG BLACK

Nexans ref. 10540016 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Black
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 13.4 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x70 mm² HONG KONG BLUE

Nexans ref. 10562419 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Blue
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 13.4 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x70 mm² HONG KONG BROWN

Nexans ref. 10549108 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Brown
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 13.4 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x70 mm² HONG KONG GREY

Nexans ref. 10540017 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular non compacted
  • Core identification: Grey
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 13.4 mm
  • Approximate weight: 660 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 353 A
  • Perm. current rating in air 30°C - trefoil formation: 268 A



H07Z-R 1x95 mm² BLACK

Nexans ref. 10536175 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 14.6 mm
  • Approximate weight: 910 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x95 mm² BLUE

Nexans ref. 10536174 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 14.6 mm
  • Approximate weight: 910 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x95 mm² BROWN

Nexans ref. 10536173 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 14.6 mm
  • Approximate weight: 910 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x95 mm² GREY

Nexans ref. 10536176 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 14.6 mm
  • Approximate weight: 910 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x95 mm² HONG KONG BLACK

Nexans ref. 10540020 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Black
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 15.6 mm
  • Approximate weight: 930 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x95 mm² HONG KONG BLUE

Nexans ref. 10540022 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Blue
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 15.6 mm
  • Approximate weight: 930 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x95 mm² HONG KONG BROWN

Nexans ref. 10540019 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Brown
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 15.6 mm
  • Approximate weight: 930 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



H07Z-R 1x95 mm² HONG KONG GREY

Nexans ref. 10540021 - Country ref. TR

  • Packaging: Drum (1000m)
  • Conductor shape: Circular compacted
  • Core identification: Grey
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 15.6 mm
  • Approximate weight: 930 kg/km
  • Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
  • Perm. current rating in air 30°C - flat formation: 430 A
  • Perm. current rating in air 30°C - trefoil formation: 328 A



Description

Description

Standards

  • Product
    BS 7211; BS EN 50525-3-41

Application

  • Indoor applications where fire safety is a priority (hotels, schools, high-rise buildings, hospitals, data centers, airports, offices, etc.)
  • Electrical panels and control panels
  • Wiring of indoor power and lighting circuits in dry environments

Construction

  1. Conductor:copper
  2. Insulation:XL-HFFR

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper
Insulation
XL-HFFR
Conductor flexibility
Stranded class 2

Dimensional characteristics

Dimensional characteristics

Number of cores
1

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
450/750 V

Usage characteristics

Usage characteristics

操作温度范围
-20 ... 90 °C
Short-circuit max. conductor temperature
250 °C
Max. conductor temperature in service
90 °C

Fire safety characteristics

Fire safety characteristics

Halogen free
IEC 60754-1
Flame retardant
IEC 60332-1-2
Smoke density
IEC 61034-2
Gases corrosivity
IEC 60754-2

Resources

Resources

Selling & delivery Information

Marking
NEXANS T BS EN 50525-3-41 H07Z-R Number of cores x cross section BASEC CPR Class

Close

Our websites

Select your country to find our products and solutions

Contact us

Topics on which you wish to get more informations:

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close

Contact us

Required fields*

Please check your entry and try again.

An email address must contain a single @

Personal data protector

You have the right to object to the processing of your personal data and/or their use for direct marketing or commercial purposes

Thank you!

Thanks for contacting us. We will be in touch with you shortly.

Error

An error occurred. Please try again.

Close
