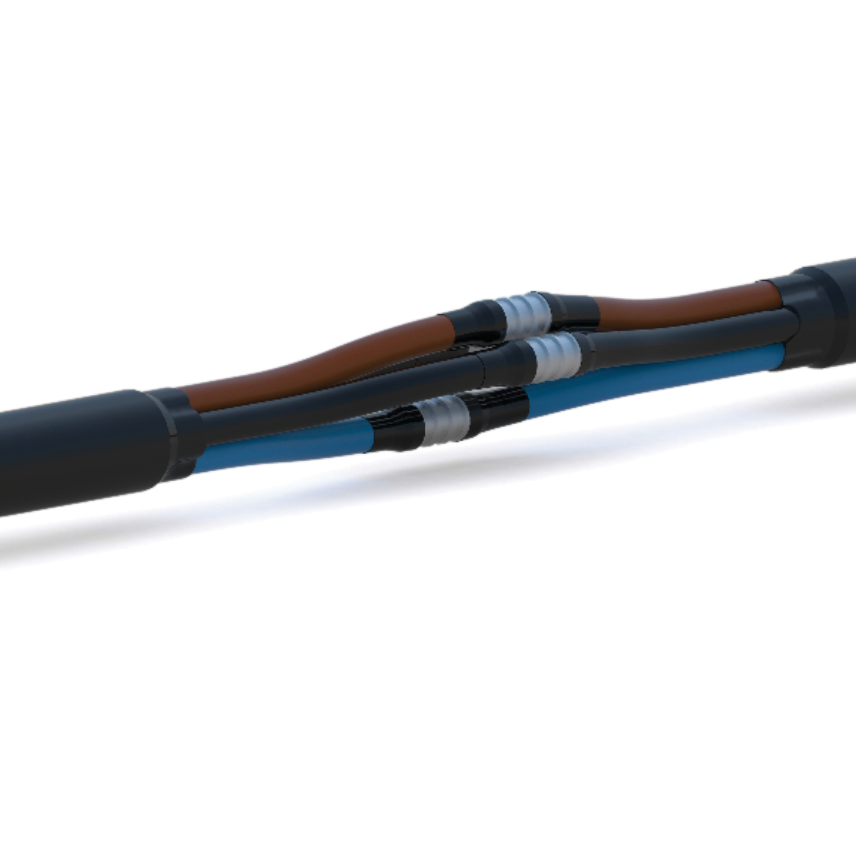

Heatshrinkable joint 1GLT C-E

Products

1GLT2C-E

Nexans ref. 1GLT2C-E

  • Type of conductor: Copper
  • Conductor cross-section, range: 6 - 16 mm²
  • Length: 375 mm



1GLT2CAL-E

Nexans ref. 1GLT2CAL-E

  • Type of conductor: Compact aluminium
  • Conductor cross-section, range: 10 - 10 mm²
  • Length: 375 mm



1GLT3C-E

Nexans ref. 1GLT3C-E

  • Type of conductor: Copper
  • Conductor cross-section, range: 25 - 50 mm²
  • Length: 500 mm



1GLT3CAL-E

Nexans ref. 1GLT3CAL-E

  • Type of conductor: Compact aluminium
  • Conductor cross-section, range: 25 - 50 mm²
  • Length: 500 mm



1GLT4C-E

Nexans ref. 1GLT4C-E

  • Type of conductor: Copper
  • Conductor cross-section, range: 95 - 150 mm²
  • Length: 750 mm



1GLT4CAL-E

Nexans ref. 1GLT4CAL-E

  • Type of conductor: Compact aluminium
  • Conductor cross-section, range: 95 - 150 mm²
  • Length: 750 mm



1GLT6CAL-E

Nexans ref. 1GLT6CAL-E

  • Type of conductor: Compact aluminium
  • Conductor cross-section, range: 240 - 240 mm²
  • Length: 1000 mm



Description

Description

Standards

  • International
    EN 50393

Application

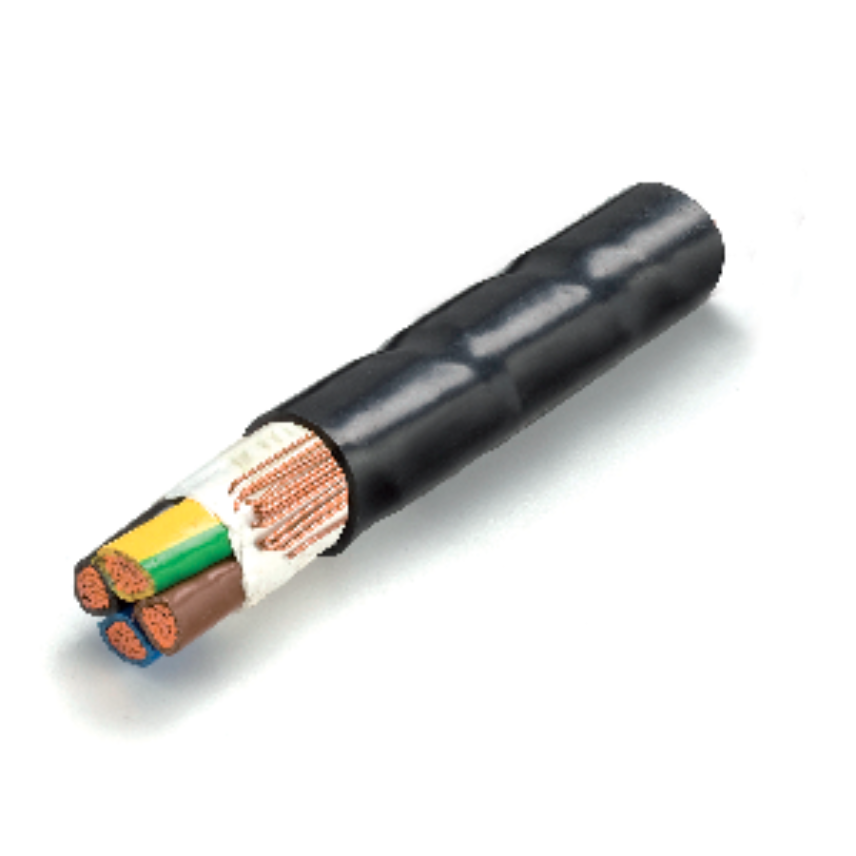

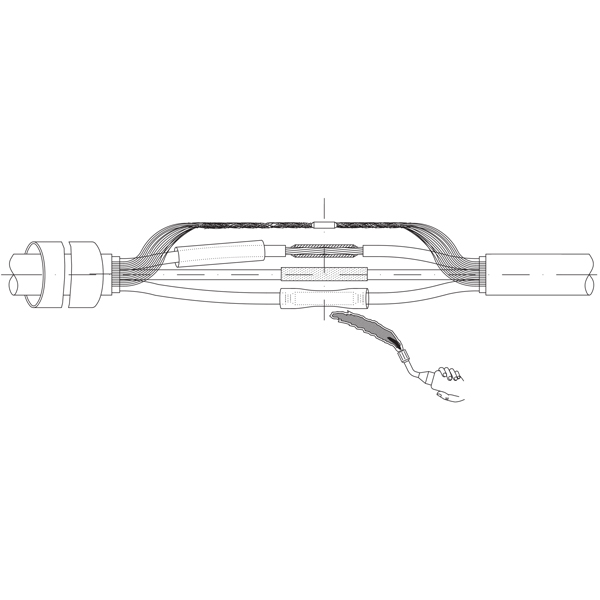

The 1GLT C-E heat-shrinkable low voltage joint kits are designed to connect low voltage cables with concentric neutral having PE, PVC, or XLPE outer sheaths.
The kits can be ordered with crimped or mechanical connectors.



Kit contents

  • Inner core/connector insulating tubes w. adhesive
  • Outer tube w. adhesive
  • Ferrules (crimp or mechanical, market specific)

1GLT C-E Other options

Characteristics

Characteristics

Electrical characteristics

Electrical characteristics

Maximum operating voltage
1 kV
