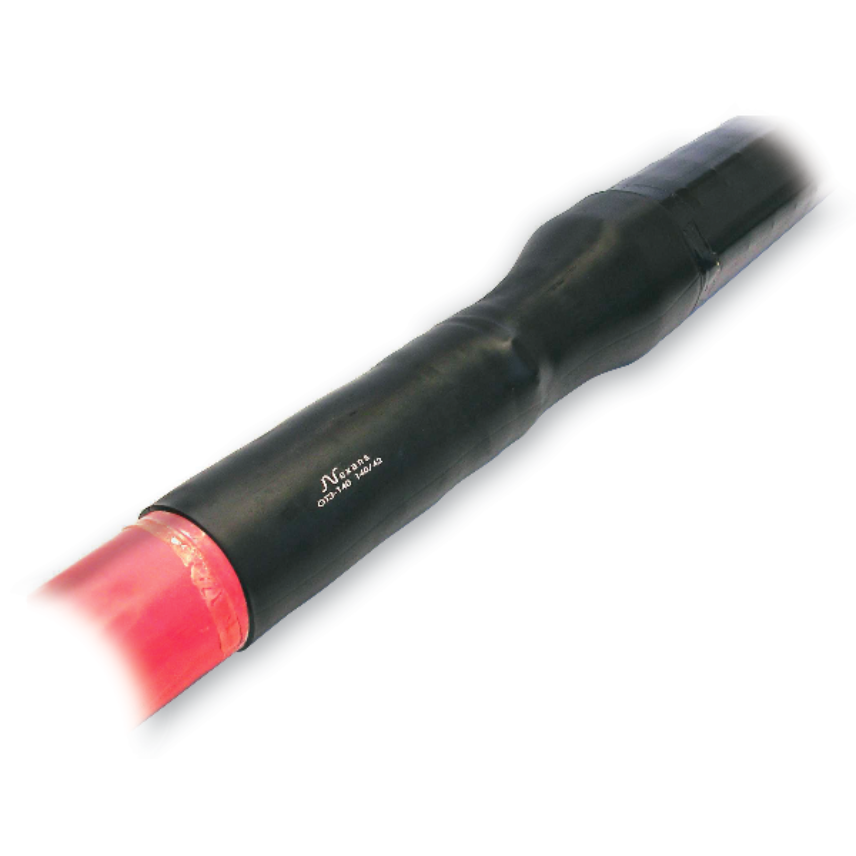

Heatshrinkable joint 1GLT KI

Products

1GLT4.16 KI

Nexans ref. 1GLT4.16 KI

  • Conductor cross-section, range: 10 ... 16 mm²
  • Length: 750 mm



1GLT4.240 KI

Nexans ref. 1GLT4.240 KI

  • Conductor cross-section, range: 185 ... 240 mm²
  • Length: 750 mm



1GLT4.35 KI

Nexans ref. 1GLT4.35 KI

  • Conductor cross-section, range: 25 ... 35 mm²
  • Length: 750 mm



1GLT4.400 KI

Nexans ref. 1GLT4.400 KI

  • Conductor cross-section, range: 300 ... 400 mm²
  • Length: 1000 mm



1GLT4.95 KI

Nexans ref. 1GLT4.95 KI

  • Conductor cross-section, range: 50 ... 95 mm²
  • Length: 750 mm



1GLT4.150 KI

Nexans ref. 1GLT4.150 KI

  • Conductor cross-section, range: 95 ... 150 mm²
  • Length: 750 mm



Description

Description

Standards

  • International
    EN 50393

Application

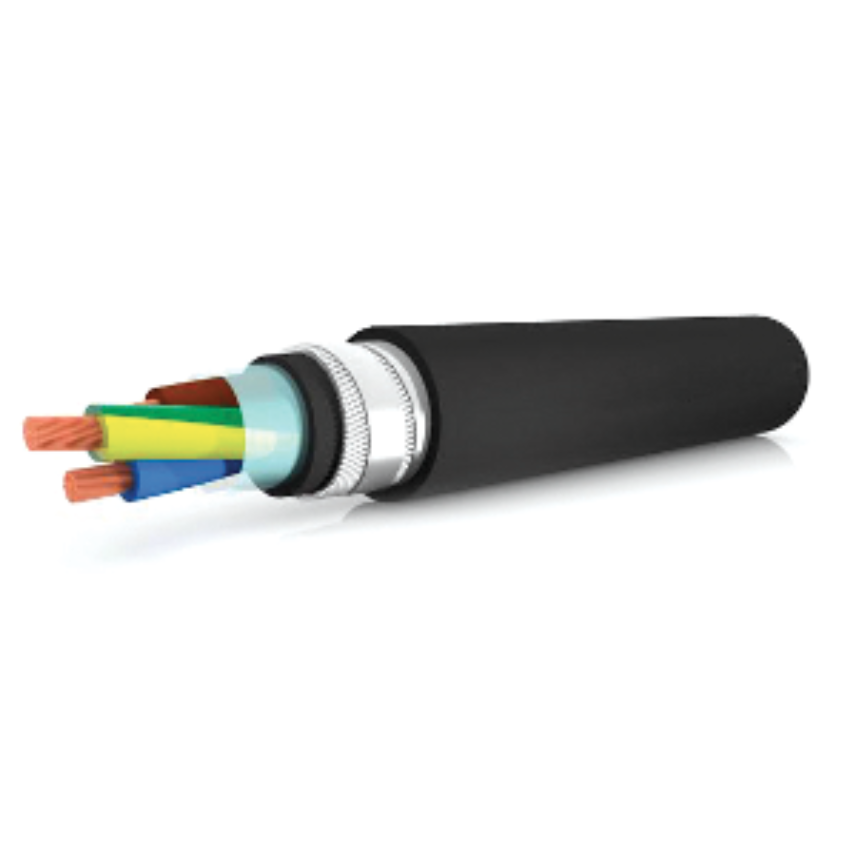

The 1GLT ki heat-shrinkable low voltage straight through joints, are designed to connect armored cables with STA or SWA having PVC, PE, XLPE or EPR insulation.
The joints are designed to accommodate both crimp or mechanical ferrules.

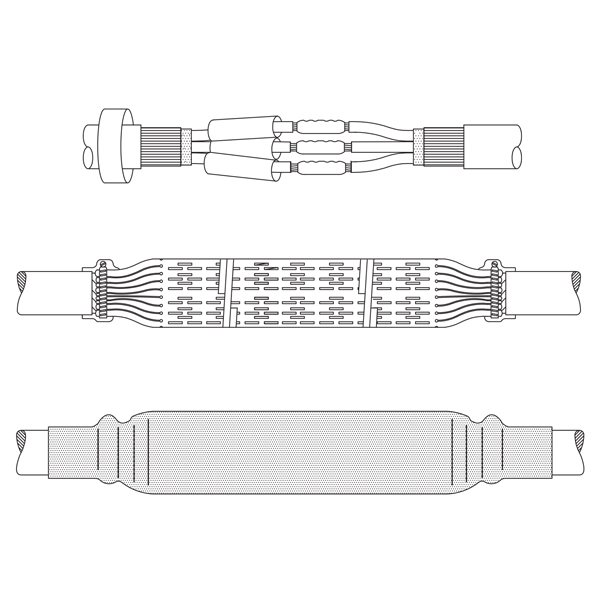

Kit contents

  • Inner core/connector insulating tubes w. adhesive
  • Canister & earthing kit (depending on cable)
  • Outer protective tube(s) w. adhesive

1GLT KI Other options

Characteristics

Characteristics

Electrical characteristics

Electrical characteristics

Maximum operating voltage
1 kV
