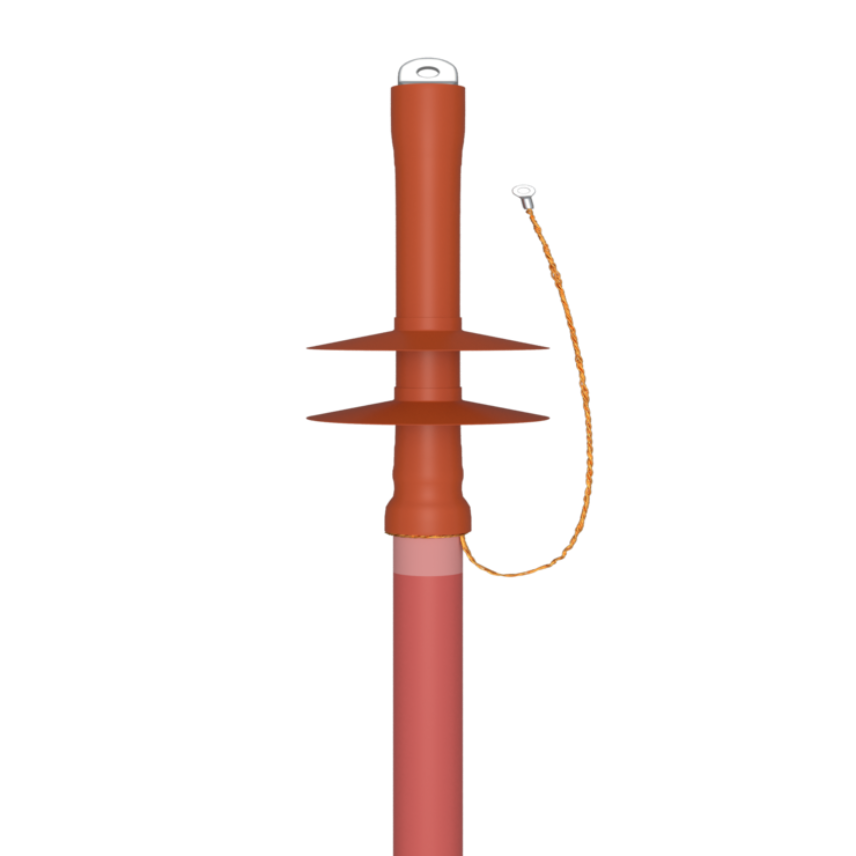

Heat shrink outdoor termination MONOe I

Description

Description

APPLICATION

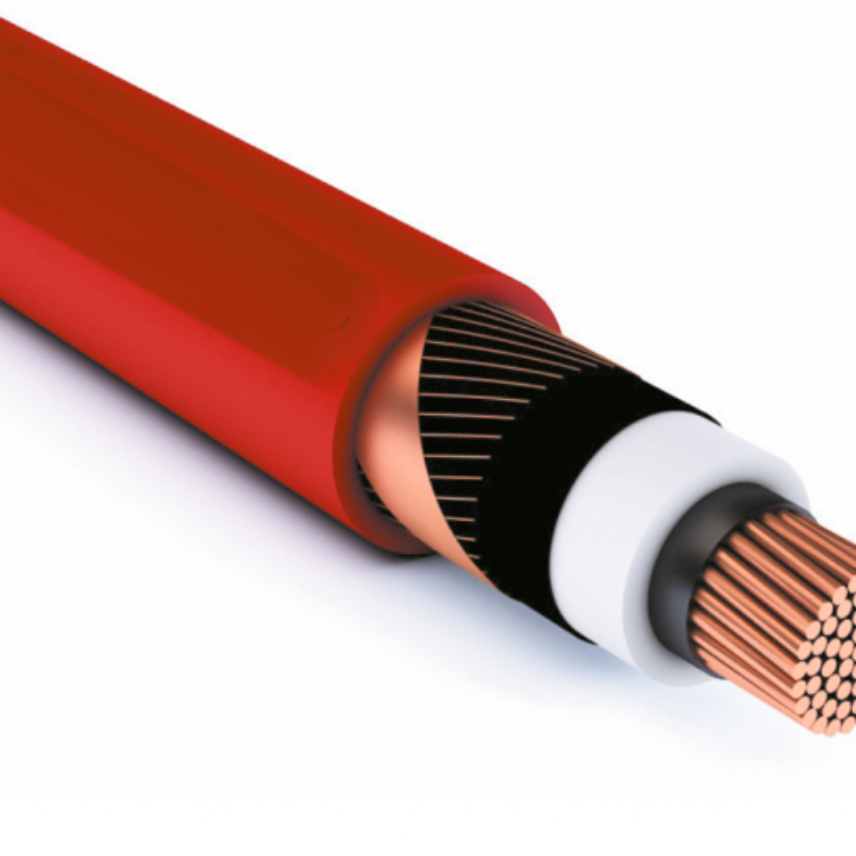

The ‘’MONOe’ terminations are a single component solution, for single core polymeric cables.

TECHNICAL FEATURES

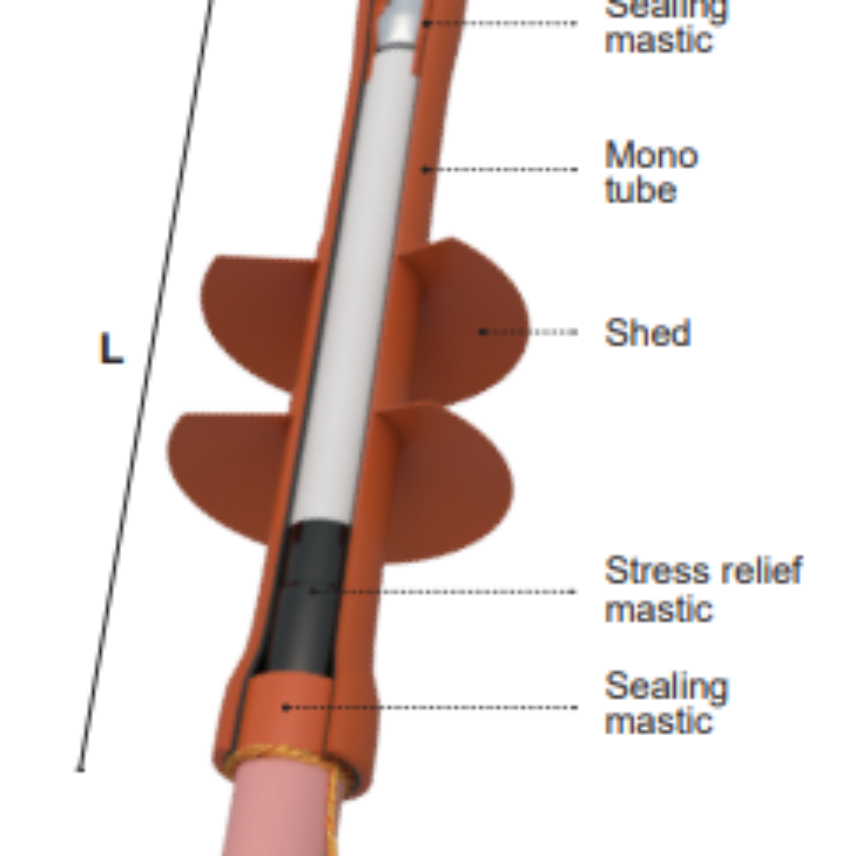

The ‘’MONOe’’ outdoor terminations are designed for max system voltages of 42 kV. Easy, quick to install, reducing installation time and errors. The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic. Anti-tracking rain sheds are supplied to withstand outdoor enviroments. The design accommodates various conductor lugs. MC types are supplied with “GPH” mechanical conductor lugs. Each “MONOe” termination kit contains material to allow for 3 phase installation.

CHARACTERISTICS PRODUCT LEVEL

Characteristics

Characteristics

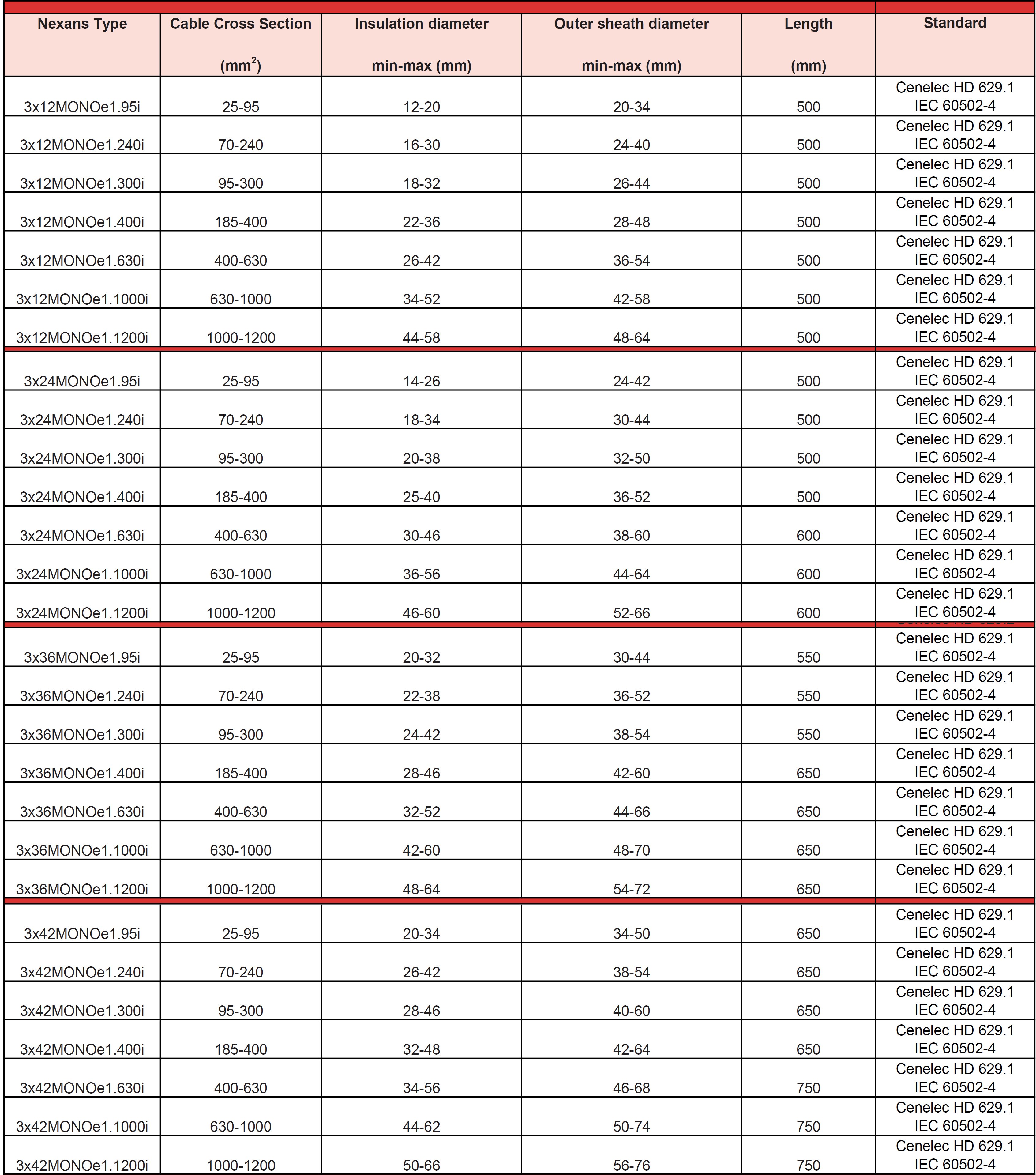

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
- mm²
Length
- mm

Electrical characteristics

Electrical characteristics

Maximum operating voltage
36 kV
