Heatshrinkable termination 1TTE

Products

1TTE3 & 1TTE 4.50 W

Nexans ref. 1TTE3 & 1TTE 4.50 W

  • Conductor cross-section, range: 16 - 50 mm²



1TTE3 & 1TTE 4.50 Z

Nexans ref. 1TTE3 & 1TTE 4.50 Z

  • Conductor cross-section, range: 16 - 50 mm²



1TTE3 & 1TTE 4.300 W

Nexans ref. 1TTE3 & 1TTE 4.300 W

  • Conductor cross-section, range: 185 - 300 mm²



1TTE3 & 1TTE 4.300 Z

Nexans ref. 1TTE3 & 1TTE 4.300 Z

  • Conductor cross-section, range: 185 - 300 mm²



1TTE3 & 1TTE 4.16 W

Nexans ref. 1TTE3 & 1TTE 4.16 W

  • Conductor cross-section, range: 4 - 16 mm²



1TTE3 & 1TTE 4.16 Z

Nexans ref. 1TTE3 & 1TTE 4.16 Z

  • Conductor cross-section, range: 4 - 16 mm²



1TTE3 & 1TTE 4.150 W

Nexans ref. 1TTE3 & 1TTE 4.150 W

  • Conductor cross-section, range: 70 - 150 mm²



1TTE3 & 1TTE 4.150 Z

Nexans ref. 1TTE3 & 1TTE 4.150 Z

  • Conductor cross-section, range: 70 - 150 mm²



Description

Description

Standards

  • International
    EN 50393

Application

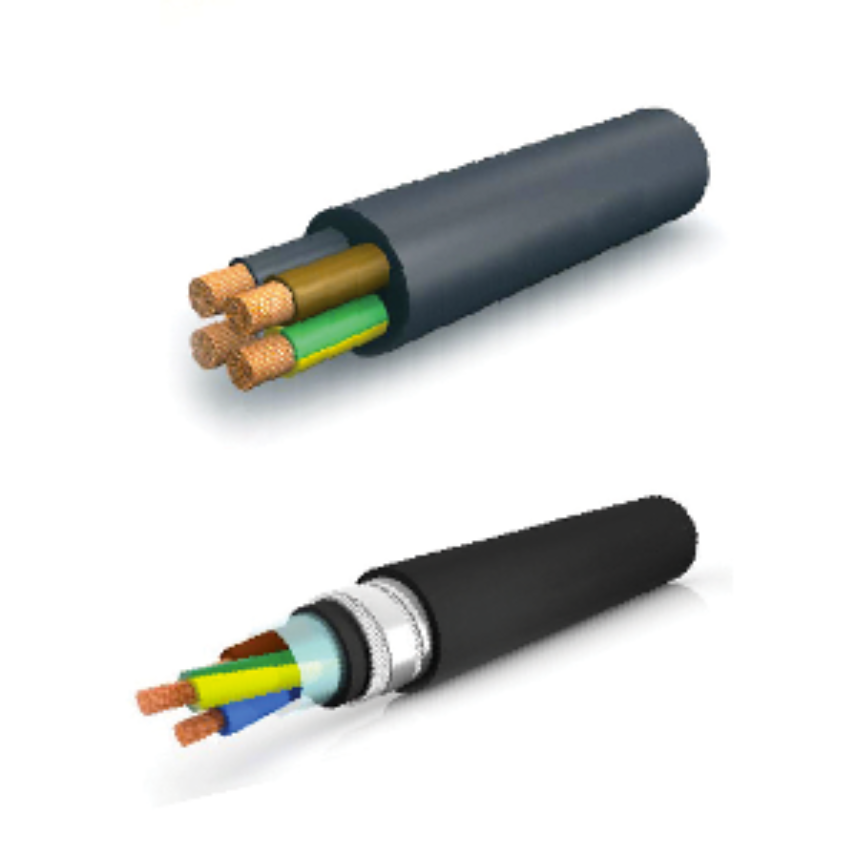

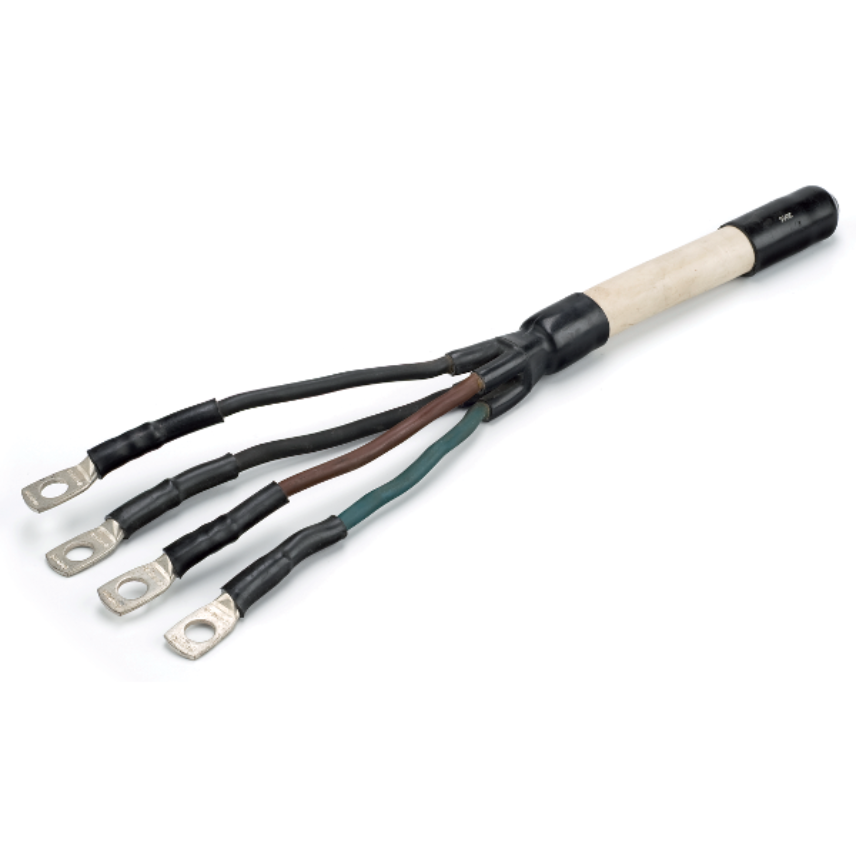

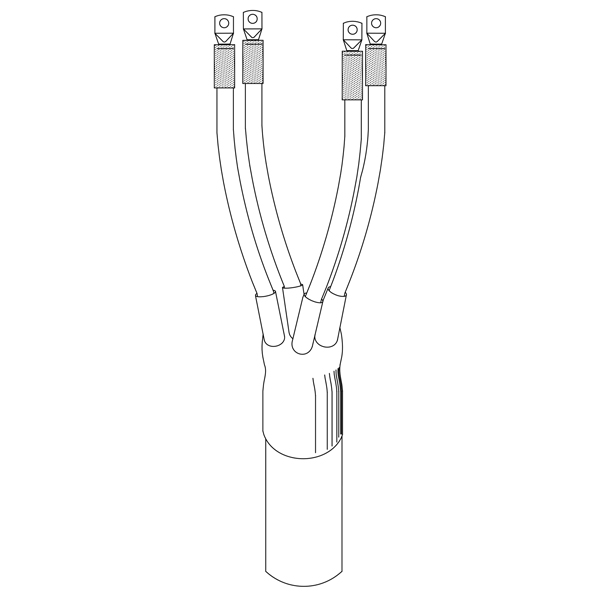

The 1TTE heat-shrinkable low voltage outdoor termination kits are designed for cables up to 4 cores with (Z)  or without (W) armor.
The adhesive coating on the lug sealing tubes, the breakout body and fingers provides a good environmental seal, while the cores are protected with thin or medium wall tubing.
All components are uv resistant.



Kit contents

  • Breakout
  • Core protection tube (thin or medium wall sleeves)
  • Lug sealing tubes w. adhesive
  • For armored cable: armor continuity kit consist of corrosion protection sleeve and earth braid

1TTE Other options

Characteristics

Characteristics

Electrical characteristics

Electrical characteristics

Maximum operating voltage
1 kV
