200SR - Interface A - Straight connector

Description

Description

Standards

  • International
    CENELEC EN 50180; CENELEC HD 629.1

Application

Separable straight connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...).



Technical characteristics

  • The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
  • Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

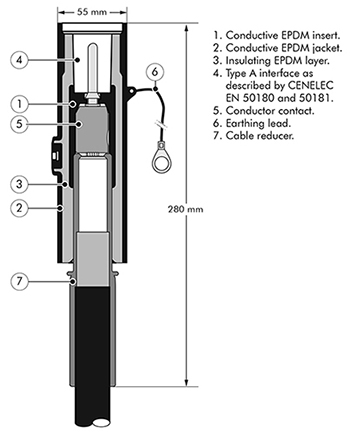

Design

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector shape
Straight
Connector type
Female
Conductor material
Copper or Aluminum
Technology
Slip-0n

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
25 ... 95 mm²

Electrical characteristics

Electrical characteristics

Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
12.7 / 22 (24) kV

Usage characteristics

Usage characteristics

Interface
A (250 A)
