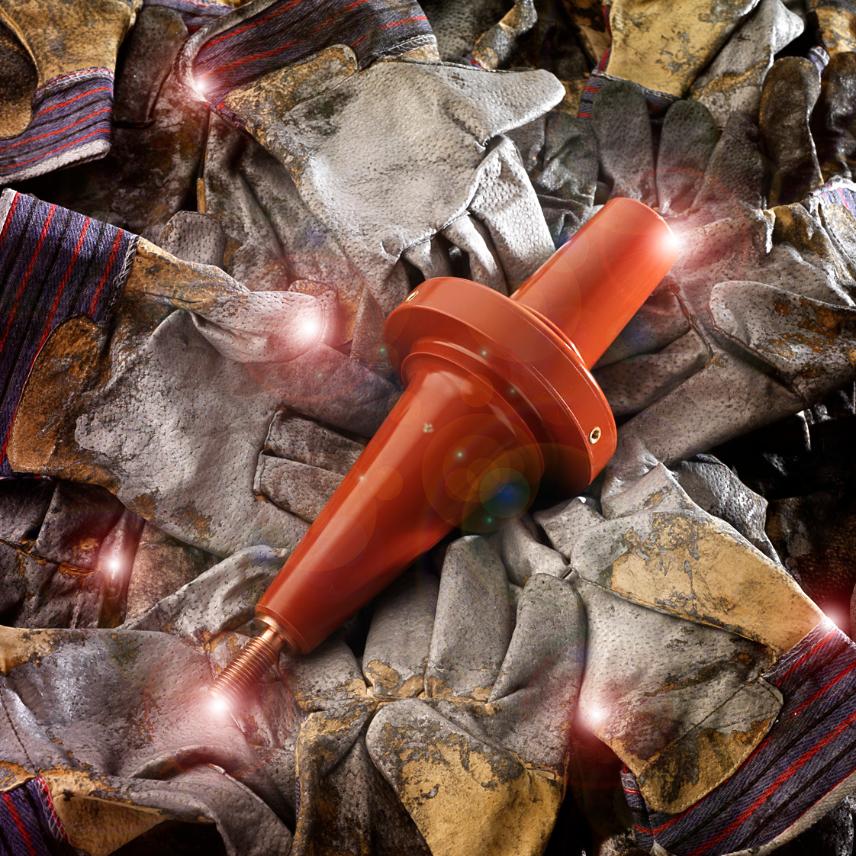

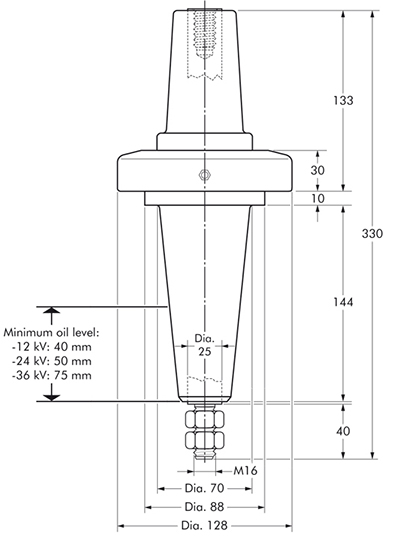

400AR-3 - Interface C - Equipment Bushing

Description

Description

Standards

  • International
    CENELEC EN 50180; IEC 60137

Application

For use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors...

Technical characteristics

Each bushing is tested for AC withstand and partial discharge prior to leaving
the factory.












Design

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector shape
Bushing
Connector type
Male
Conductor material
Copper
Technology
Slip-0n

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
0 ... 0 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
19 / 33 (36) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
85.5 kV
Impulse voltage
194 kV

Usage characteristics

Usage characteristics

Interface
C (630 - 1250A)
