480TB- Interface C - Tee connector

Description

Description

Standards

  • International
    CENELEC EN 50180; CENELEC HD 629.1

Application

Separable tee shape connector (bolted type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...).

Also connects cable to cable when using the appropriate mating parts.



Technical characteristics

• A thick conductive EPDM jacket provides a total safe to touch screen.

• Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

Design

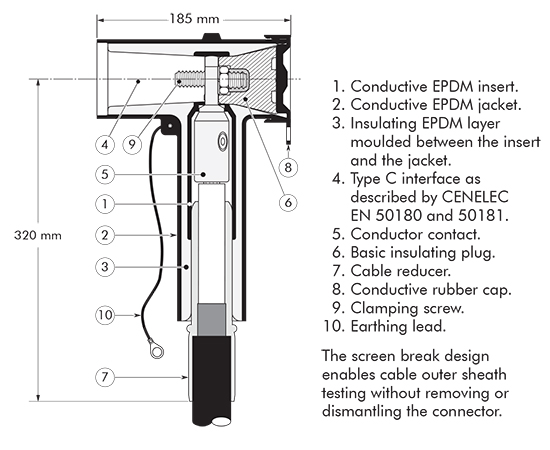

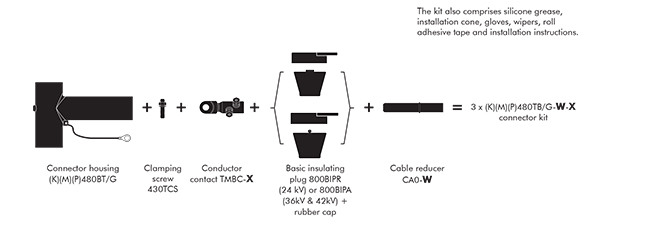

Kit contents

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector shape
T-shaped
Connector type
Female
Conductor material
Copper or Aluminum
Technology
Slip-0n

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
35 ... 300 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
20,8/36 (42) kV
Maximal partial discharge at 2Uo
10 pC
Dielectric withstand voltage, 50Hz 1mn
93.5 kV
Impulse voltage
200 kV

Usage characteristics

Usage characteristics

Interface
C (630 - 1250A)
